Product Details

• Maximum Loading Capacity: 800kg(1760 pounds),and Fit for: 3-18mm(0.12-0.7 inch) Wire and Ropes.

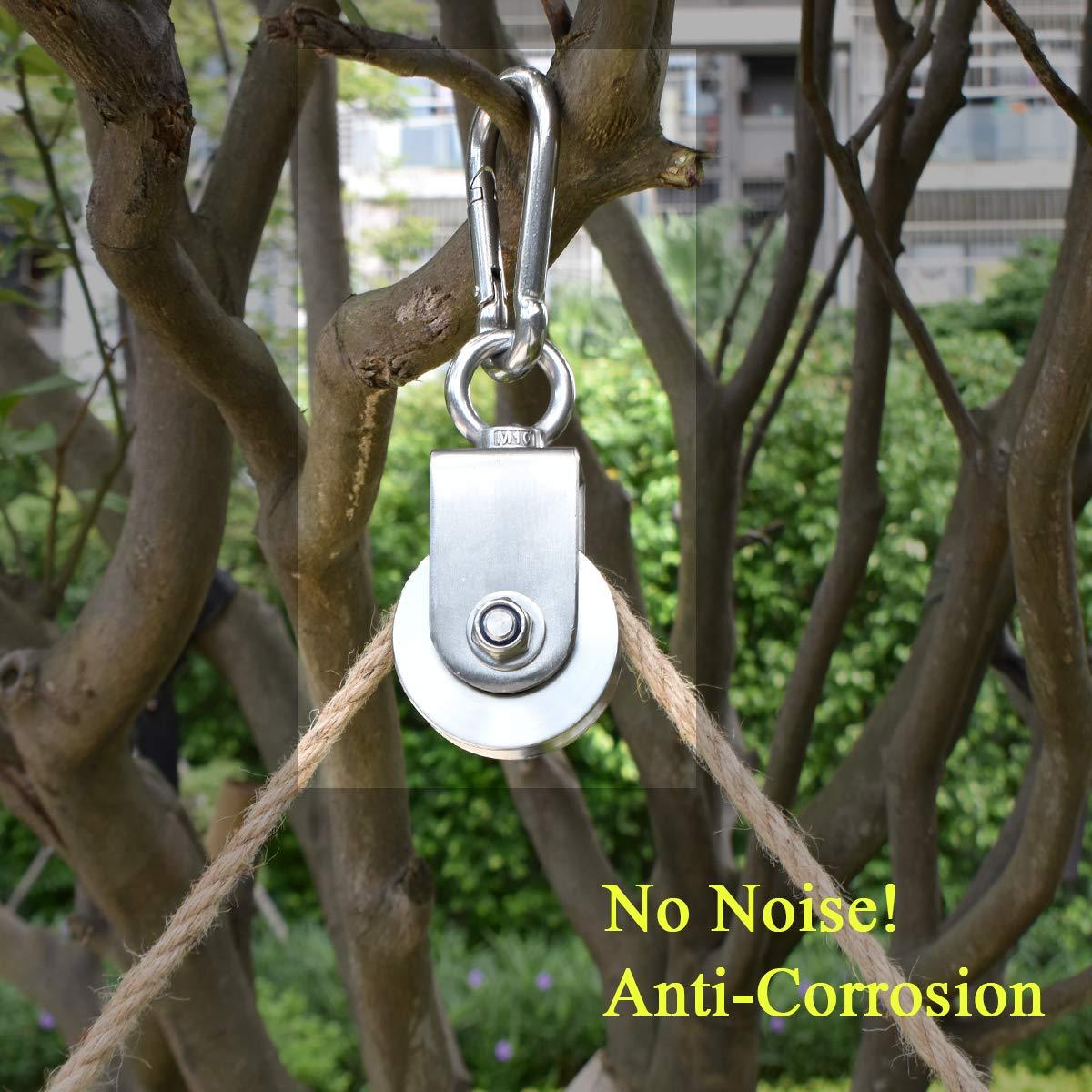

• Made of durable hard 304 stainless steel, manufactured in strict process, strong, reliable, waterproof, anti-rust, anti-high temperature, corrosion resistance, will ensure its practicability in the work of highly performance.
• Easy installation and convenient to use, make your work easier. Used to change the direction of an applied force, transmit rotational motion, or realize a mechanical advantage in either a linear or rotational system of motion.

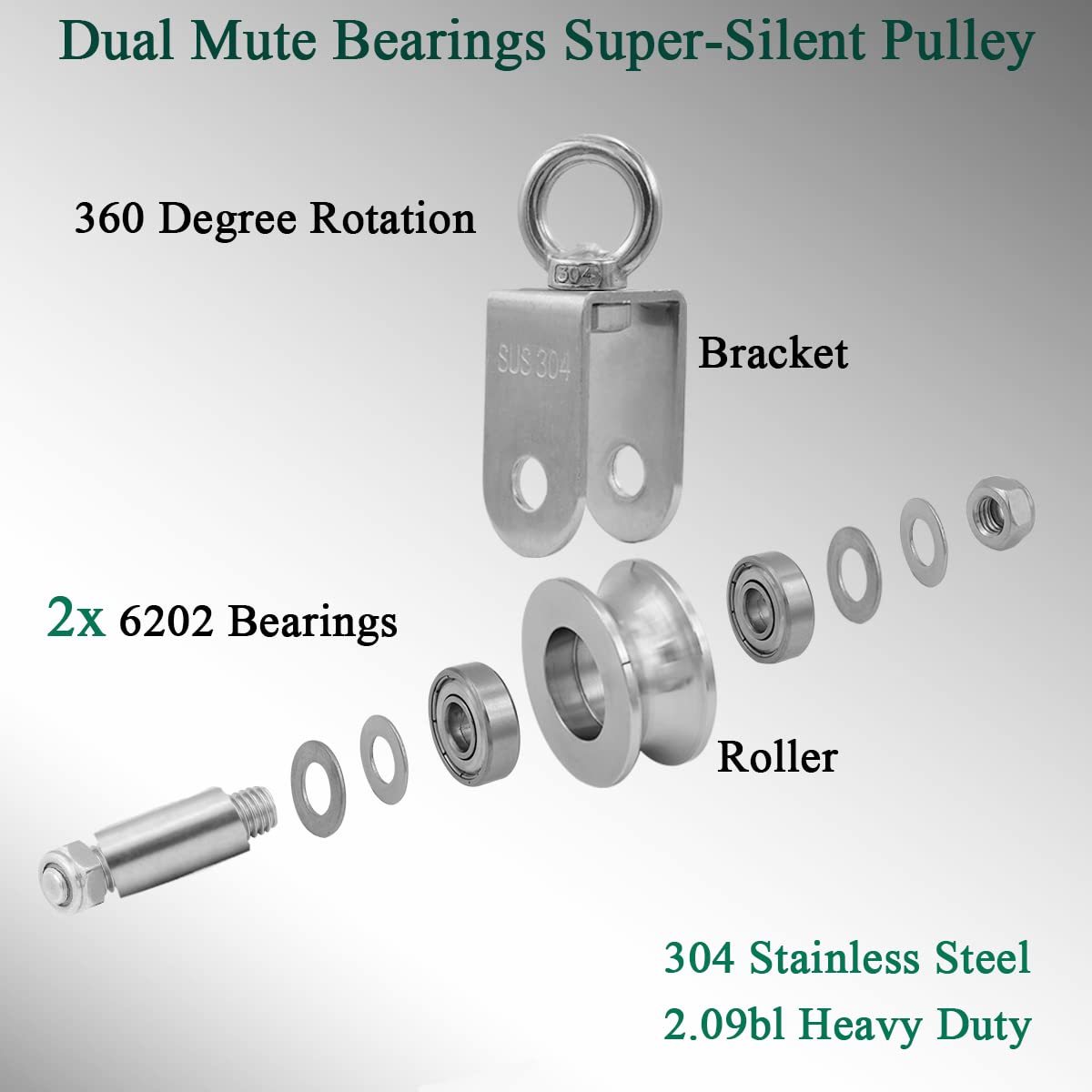

• 360 Degree Rotation: Swivel top ring for ease rope handling, smooth roller provides great rope traverse.

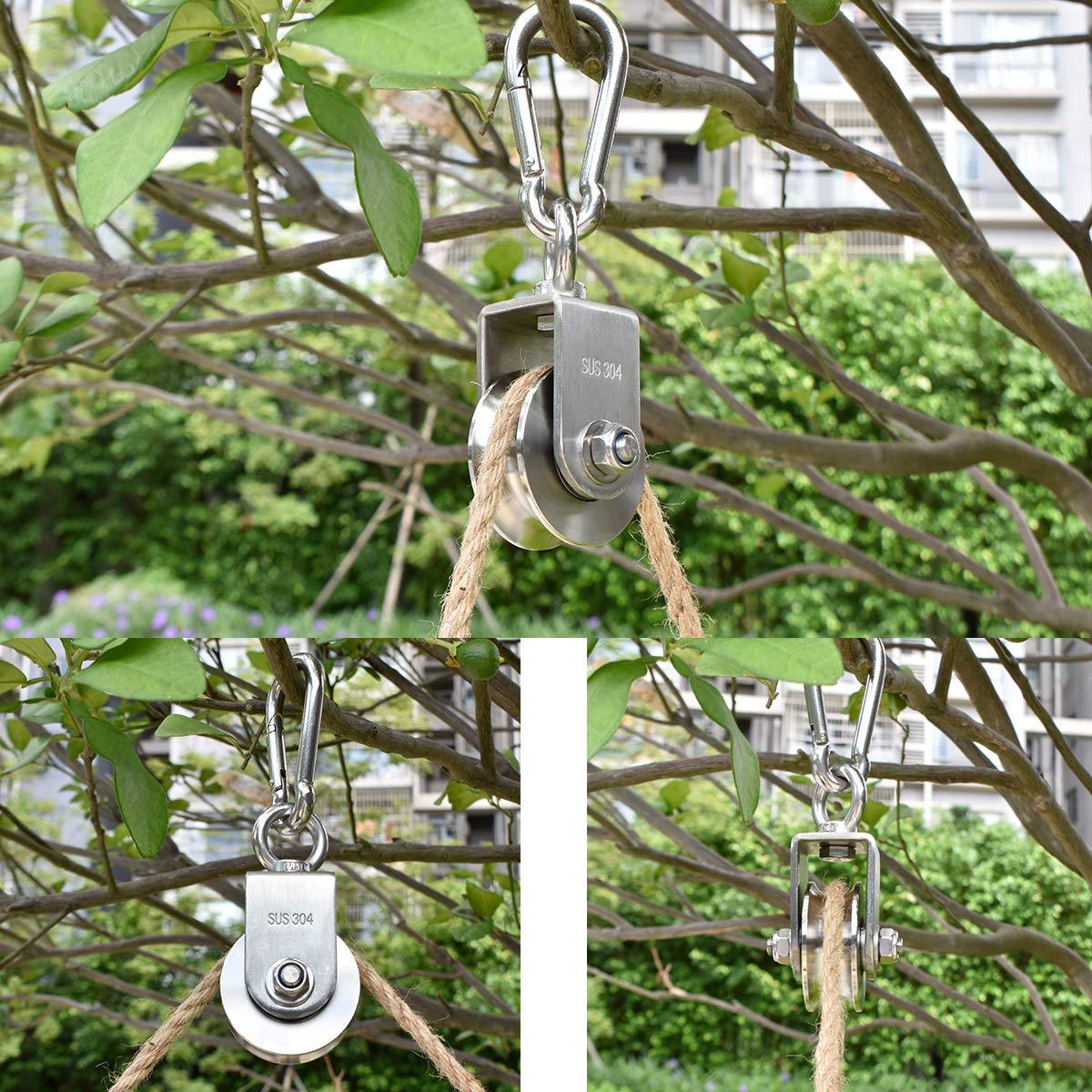

• Widely used for wire rope traction, object handling,such as for Garage, Machine Loading, Curtain, Clothes Line, Dog Pulley System etc.

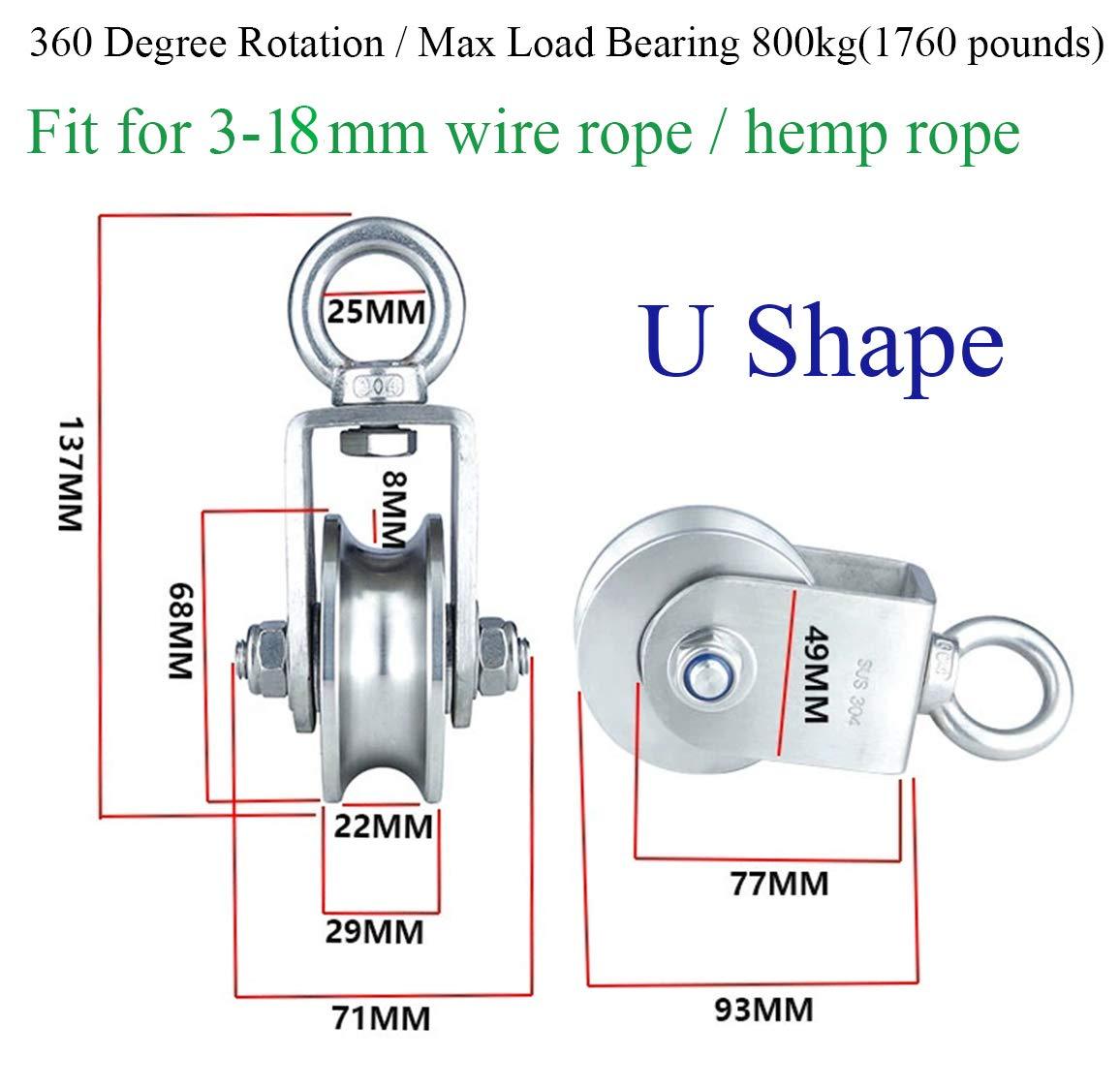

Specification:

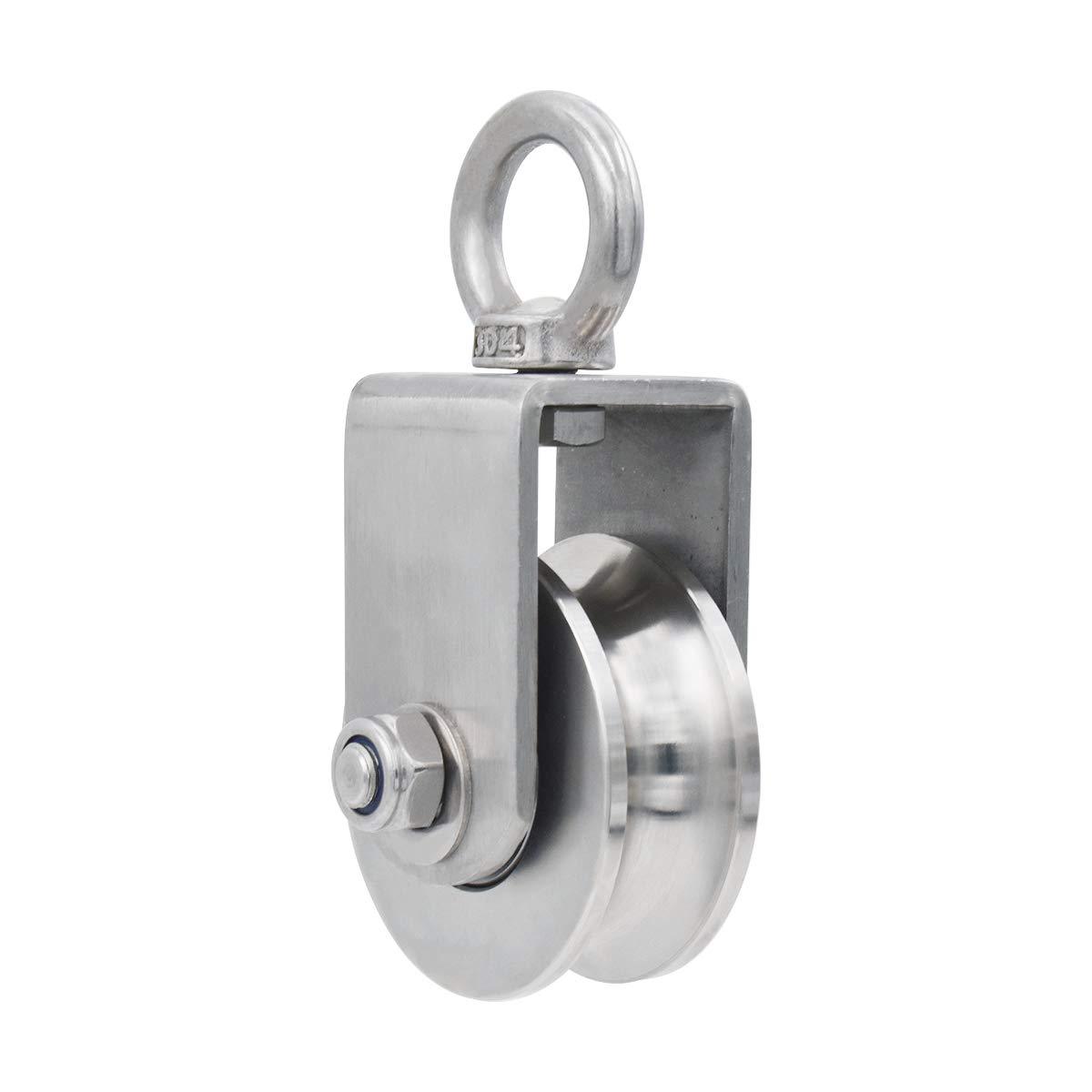

Product Name: U Type Swivel Pulley

Color: Silver Tone

Material: 304 stainless steel

Wheel Diameter: 68mm/2.68 inch

Groove Width: 22mm/0.86 inch

Groove Depth: 8mm

Swivel Ring Diameter: 25mm/1 inch

Overall Height: 137mm

Thickness: 3mm/0.12 inch

Max Load Bearing: 800KG/1760 Pounds

Fit For: 3-18mm/0.12-0.7 inch wire ropes.





Note: Manual measurement, please allow 1-3mm errors.
